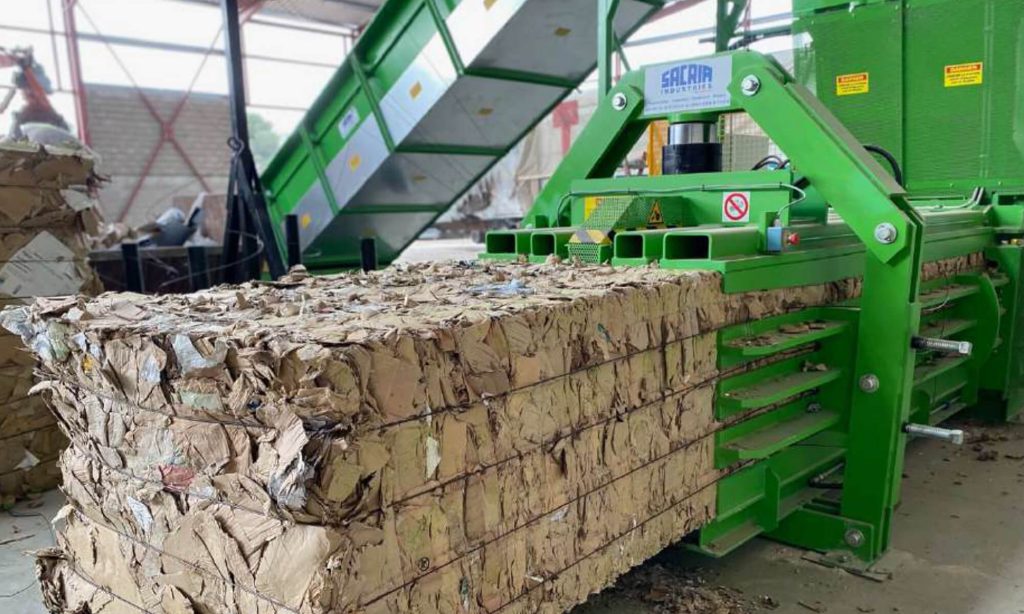

Saphir 1000 ATH
Automatic Horizontal Baler (20+ tonnes per week)
Our fully automated horizontal 80 tonne baler meets the challenges by centralizsd waste handling in many businesses and organizations where huge volumes of recyclable paper-based and plastic wrapping are produced. We offer well-proven technology for special demands! The automatic tying and continuous baling allows multi-shift operation.
Features
- Anti-abrasion steel and wear resistance with mechanically welded construction
- Realtime machine status and display read out of machine status, faults, alert.
- Latest hydraulic unit: drill block equipped with distribution and highly dimensioned logic valves
- Independent cooling and filtration group
- Adjustable bale density: via a electronic system allowing a display of predefined and easily modifiable pressures
- Compact machine: hydraulic group on the machine, low height compared to on the ground for the exit of the balls
- Vertical or Horizontal Tying: great versatility to bale different sorts of material
Handled Materials
- Paper, Cardboard
- Plastic, Shrink film, PET/ PEHD
- Metal, Food cans, Paint cans
- Wood, Crates
Specification
| Dimensions (mm) (Length, Width Height) without bale exit | 7,860 x 4,435 x 3,060 |
| Feed Opening (mm) | 1,100 x 1,550 |
| Infeed capacity (m3) | 1.36 |
| Press force (tonne) | 100 |
| Motor (kW / Hp) | 55 / 75 & 75 / 100 |
| Surface pressure (kg / cm2) | 11.3 |
| Cycles per minute | 3.5 |
| Channel section (mm) | 1,100 x 800 |
| Oil tank capacity (L) | 1,000 |
| Total machine weight (kg) | 15,000 |
| Production rate with load (m3 / hour) | 220 / 320 |
| Production accord. density (tonne / hour) | 11-18 / 16-25 |
| Automatic binding | 4 wires Ø 3.4 |
| Bale size (mm) | 1,100 x 800 |
| Adjustable length (mm) | 800 – 2,150 |
| Bale weight cardboard (kg) depends on bale length | 400 – 1,000 |
Renting or Purchasing
Renting
The benefits of renting a baler are:
- No capital outlay
- Tax saving on rental
- Financial saving on waste removal
- Flexible upgrades that suit you.
Purchasing
The benefits of buying a baler are:
- Flexibility in service contract
- Full capital allowances
- Asset to the business
Balers we Offer
We offer a range of balers for sale or rental. View our balers available and prices:
Compactors we Offer
We offer a range of balers for sale or rental. View our balers available and prices:
Free Waste Audit
Call, email or enquire via our free waste audit form to contact a waste specialist from Waste Handling Solutions to find out more or arrange a free waste audit.
Ancillary Equipment

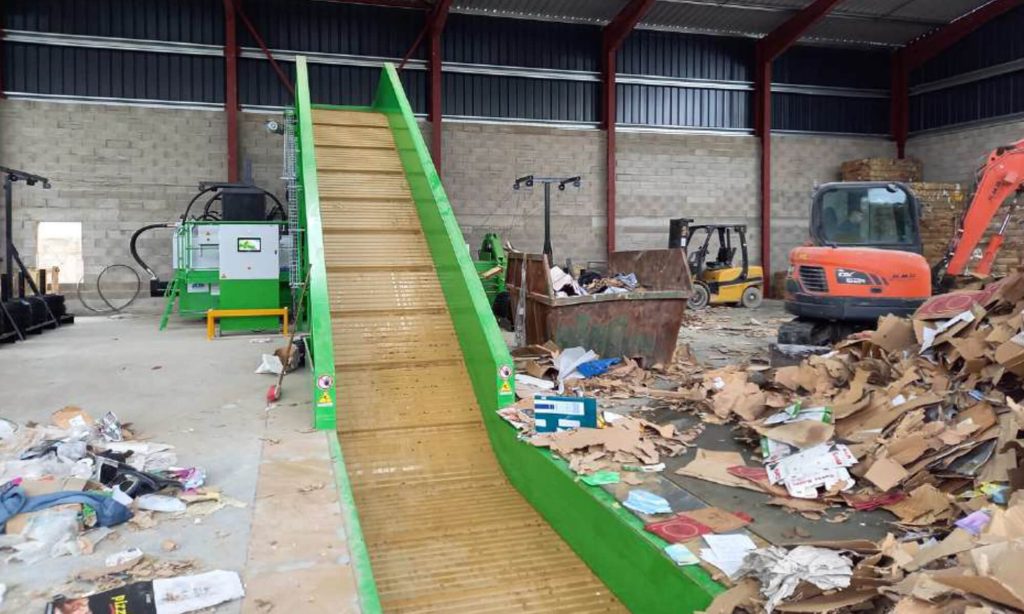

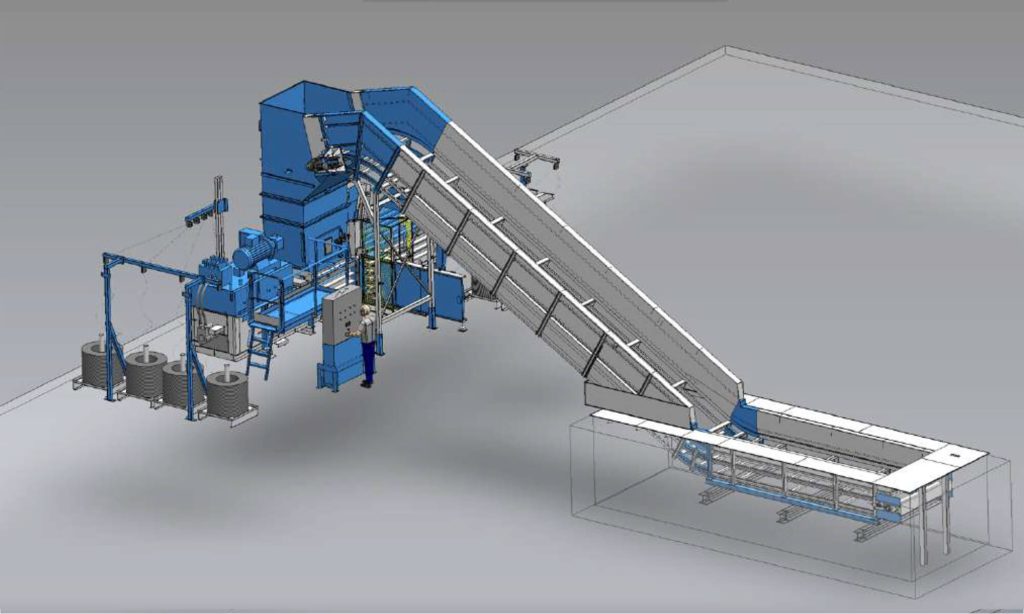

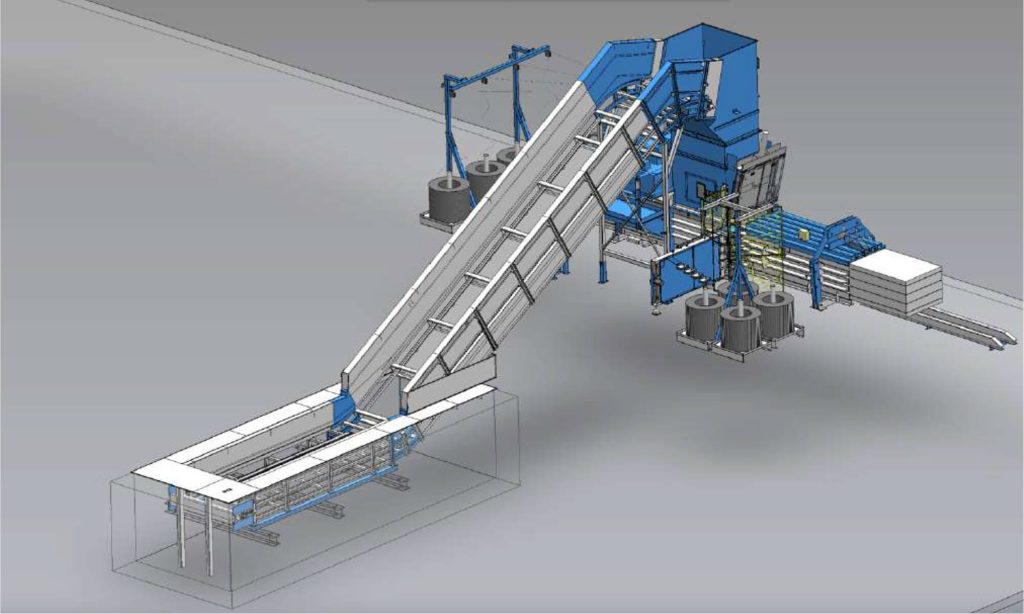

To fit the conditions in your environment, the Saphir horizontal balers offer a wide choice of in-feed systems:
- manual feed
- by bin feed

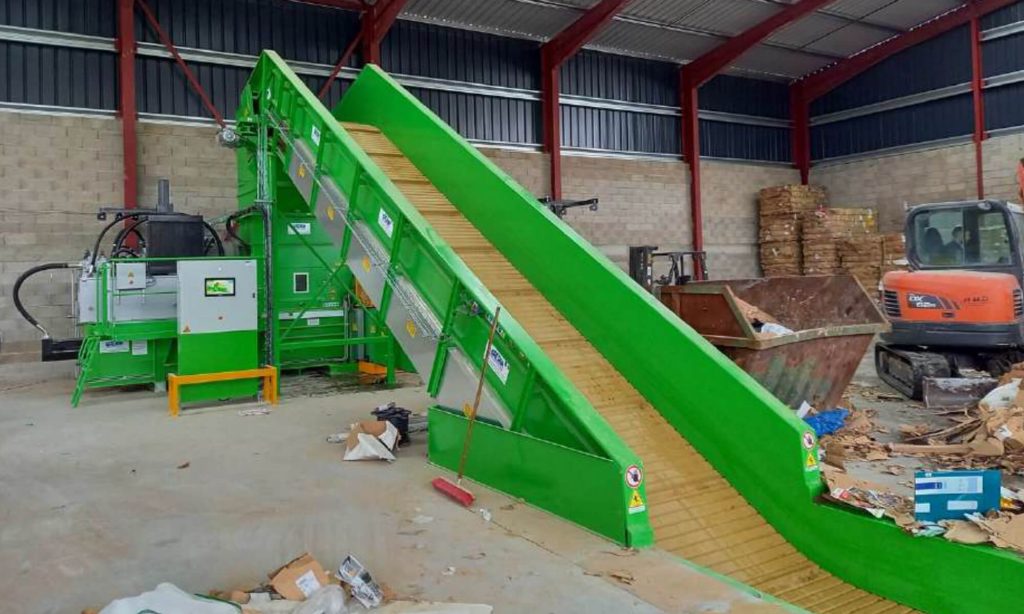

- air-transport or conveyor belt
- shredders
- bottle presses
- rufflers
- strippers
- hoppers
- horizontal tying
- bin lifts
- cooling & heating systems
- stamper
Services
We can assist with training, commissioning, follow-up sessions and other services.
Installation
We offer installation on all our balers and compactors for sale or rent.
