Static Waste Compactors
About Static Compactors
A static compactor is a highly efficient solution designed to compress and significantly reduce the volume of waste. By using hydraulic pressure, these machines are ideal for handling non-recyclable waste like cardboard, paper, plastic, aluminium, food waste, and other general waste types.
What’s in it for you? Compacted waste means fewer collections, which translates into reduced waste management costs and increased efficiency. More waste can be collected in each pickup, cutting down on the frequency and expense of collections.
Why Choose WHS for Your Static Compactor Needs?
We not only offer a variety of feed options to suit your unique business needs but also ensure compliance with health and safety regulations. Our goal is to make your waste management process as safe, efficient, and cost-effective as possible.
Looking for Portable Compactors?
If you are dealing with wet waste then our portable compactor maybe more suited to your needs.
Our Static Compactors
At Waste Handling Solutions Ltd (WHS), we offer a range of static compactors that cater to different business needs. Whether you’re managing high volumes of waste or looking for a machine with faster processing speed, our static compactors are designed to make your waste management process as cost-effective and seamless as possible.
The primary differences between our static compactors are size and speed. Below, you’ll find the three types of static compactors we offer, each suited to different operational needs, followed by a comparative table outlining the specifications of each model.
Key Benefits of Our Static Compactors:
Fewer Collections: Reduce the number of collections and associated transport costs.
Larger Capacity: More waste handled with each collection, improving efficiency.
Customised to Your Needs: Choose the size and speed that fits your waste management requirements.
WHS Cubic Metre Compactor Units
| Specification | 2.0 | 2.5 | 3.0 |
|---|---|---|---|
| Load aperture (mm) | 1430 x 1200 | 1500 x 1270 | 1500 x 1800 |
| Cycle time (seconds) | 45 | 45 | 60 ~ 84 |
| Charge box volume including hopper (m³) | 2.0 | 2.5 | 3.0 |
| Ram penetration (mm) | 300 | 400 | 400 |
| Compaction force (tonnes) | 28 | 32 | 38 |
| CHEM1 volume per stroke (m³) | 1.37 | 1.90 | 2.70 |
| CHEM1 volume per hour (m³) | 110 | 152 | 121 – 162 |
| Motor rating (KW) | 7.5 | 7.5 | 7.5 / 11 |
| Power requirements (phase / Amp) | 3 / 32 | 3 / 32 | 3 / 32 |
| Weight (tonnes) | 4.2 | 4.5 | 5.2 |
- Chem – “Container handling equipment manufacturers” standard.
- BS EN12574-2 – Standard for stationary waste containers performance requirements and test methods.

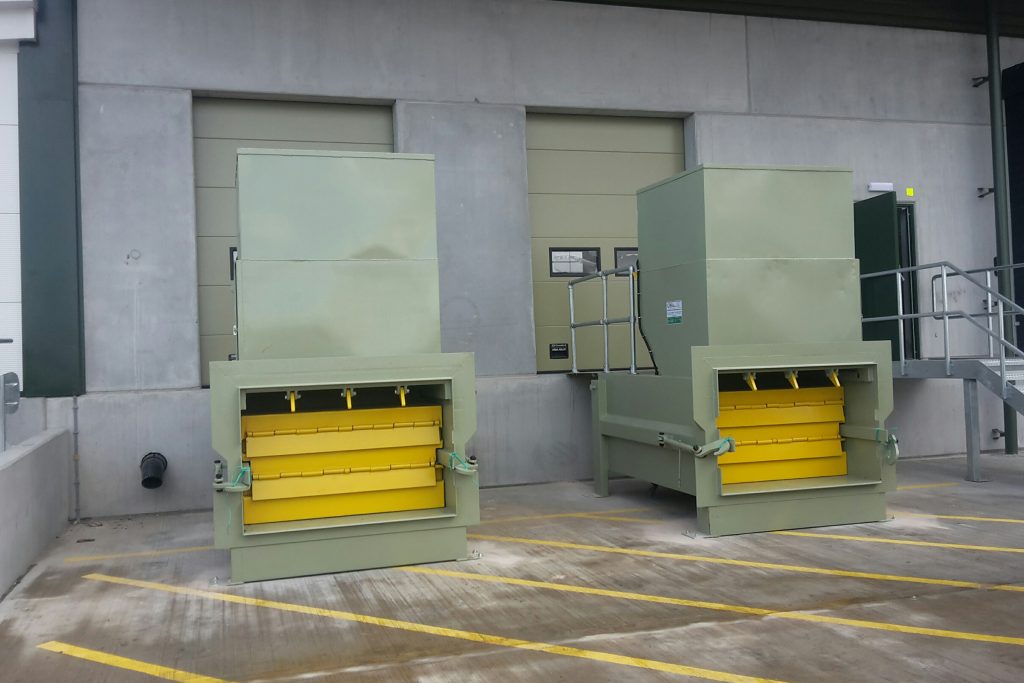

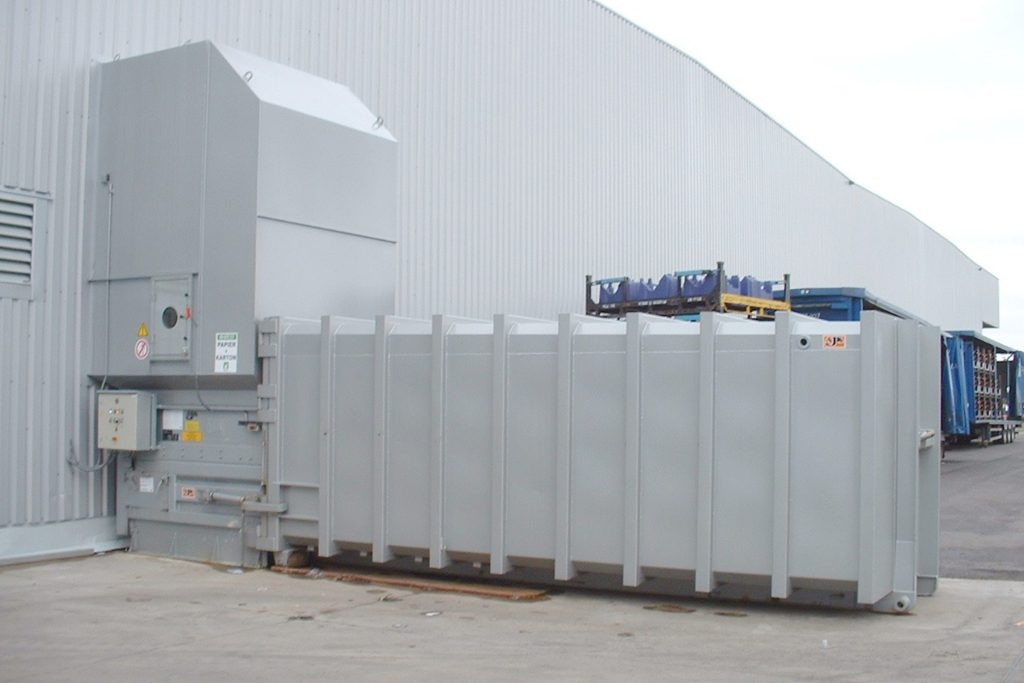

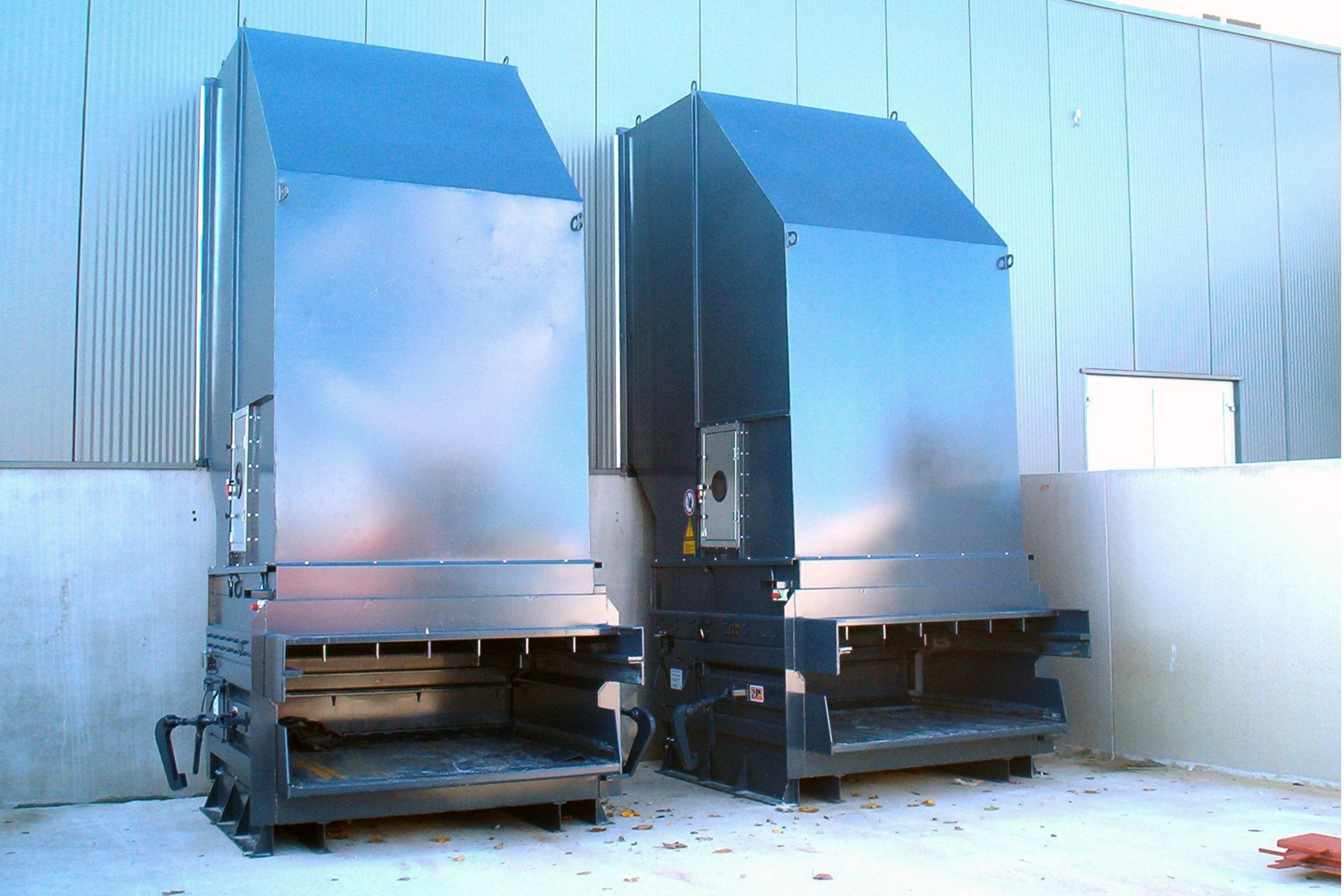

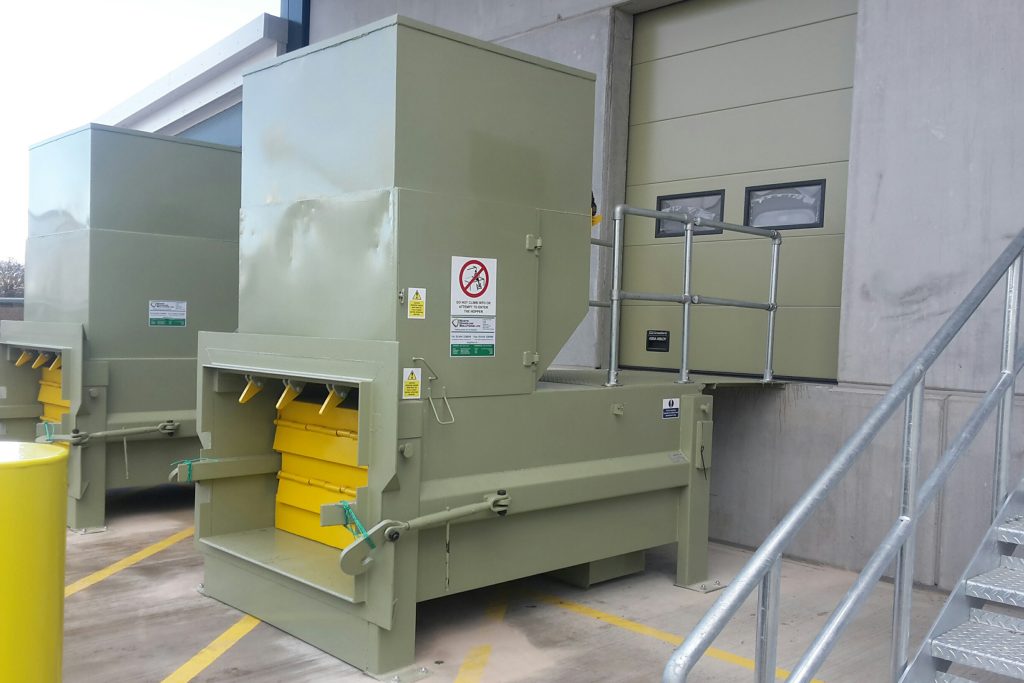

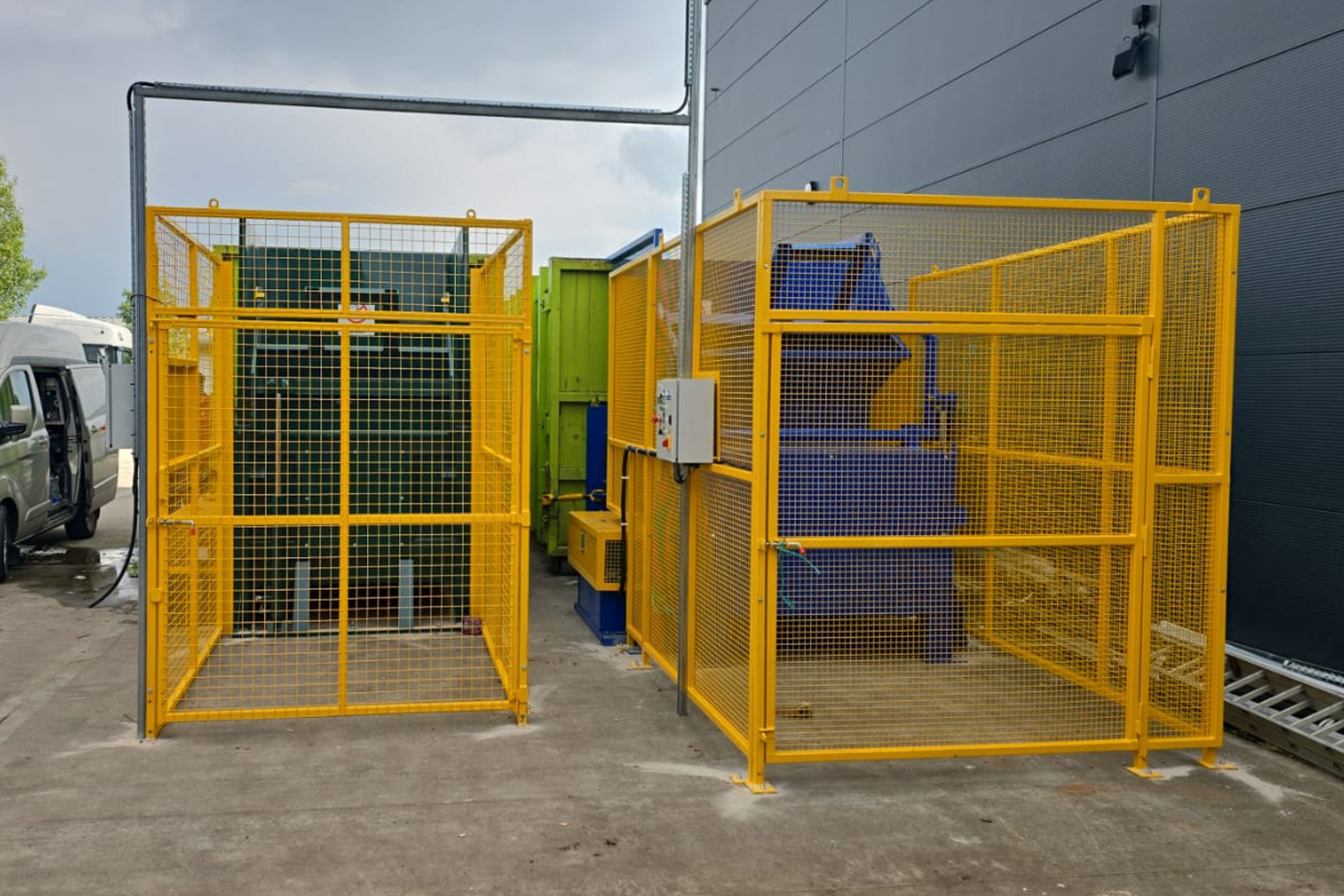

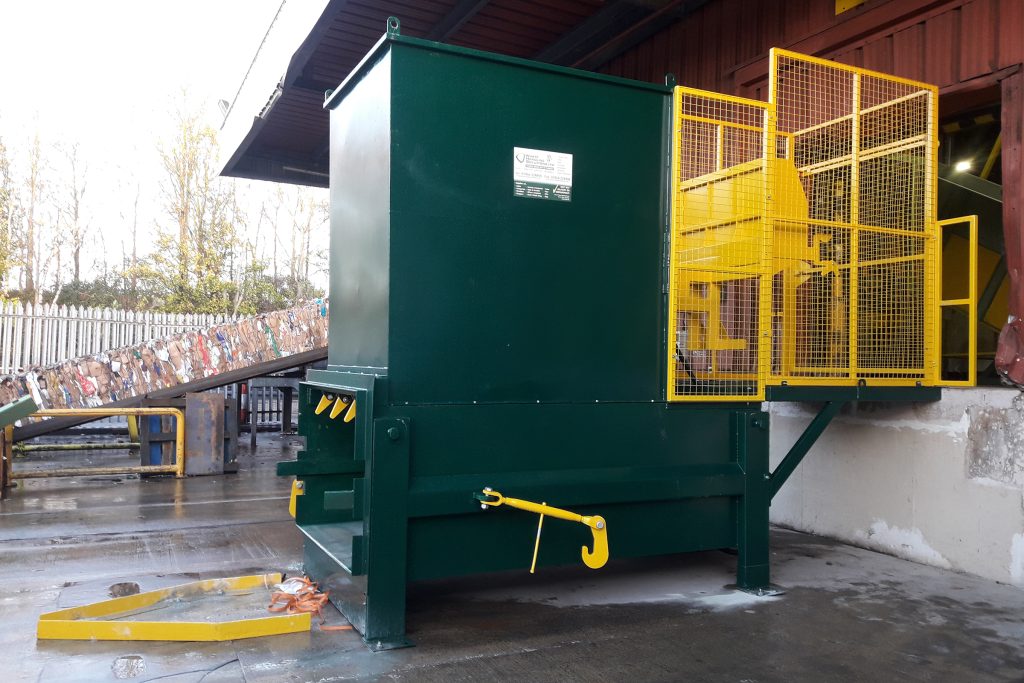

Examples of Static Compactors
The following are a range of static compactors we offer, in-situ and in use.
Static Compactor Feed Options
At Waste Handling Solutions Ltd (WHS), we understand that every business has unique waste management needs. That’s why we offer a variety of feed options for our static compactors, designed to improve efficiency and safety while seamlessly integrating into your existing operations.
Here are the feed options available for our static compactors:
- Chute Feed: Convenient for waste disposal from upper levels or specific production areas, ensuring quick and easy waste handling.
- Forklift / Grab Feed with Splayed Hoppers: Ideal for high-volume waste handling, this option simplifies the process for large-scale operations using mechanical loading systems.
- Hand Feed: Suitable for manual waste loading from both sides, with optional safety trip bars depending on the height to comply with health and safety regulations.
- Rear Bin Lift System (with Safety Cage): Available at dock or ground level, this system enables safe and efficient waste handling using standard wheelie bins.
- Side Bin Lift System (with Safety Cage): Another flexible option at dock or ground level for handling waste via wheelie bins, ensuring both safety and operational efficiency.
- Pneumatic (Air Driven) Feed System: For businesses handling lightweight waste materials, this system offers an automated and efficient solution for feeding waste into the compactor.
- Worm Screw Feed: Ideal for specialised waste like materials from de-watering plants, providing a continuous feed system for consistent waste management.

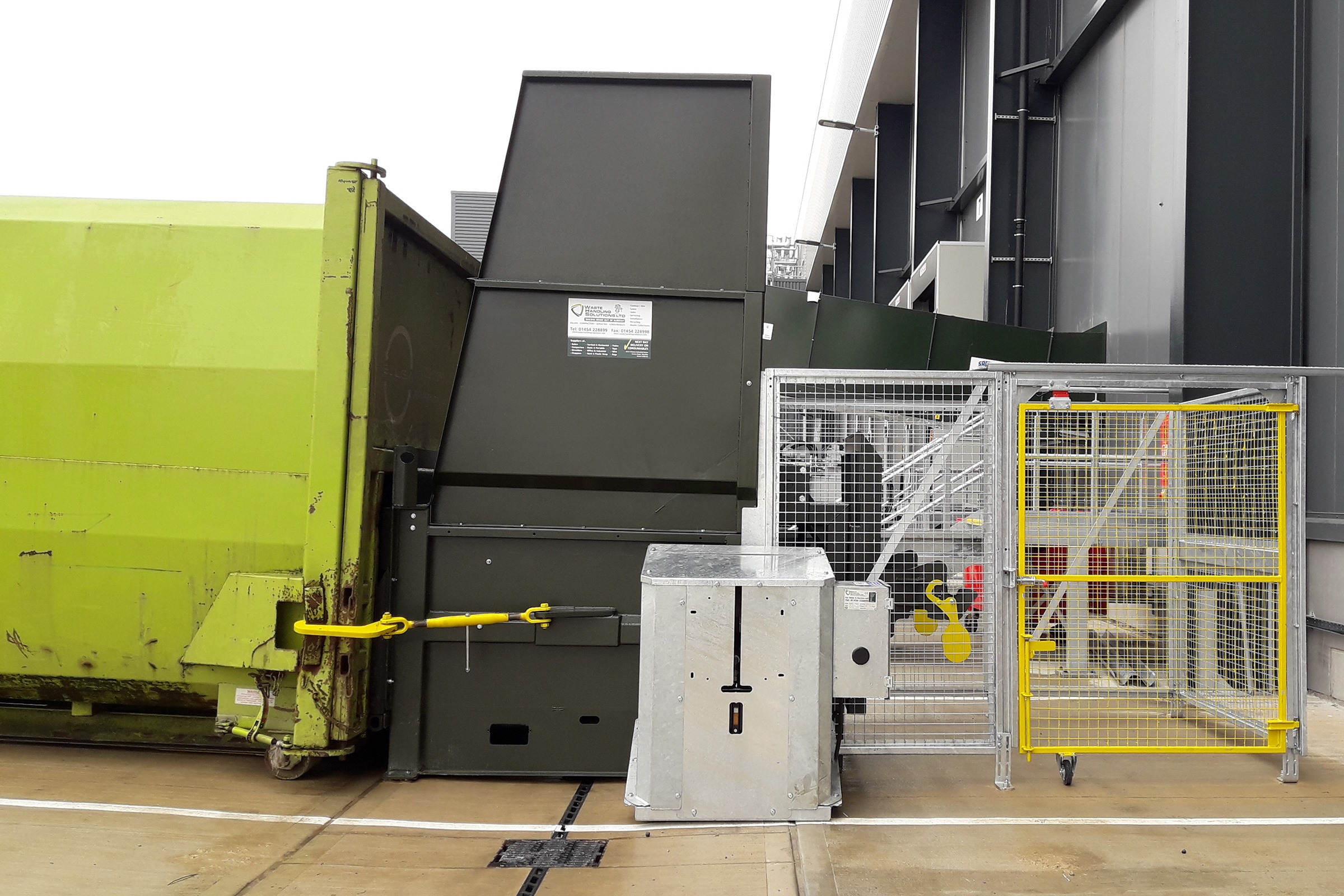

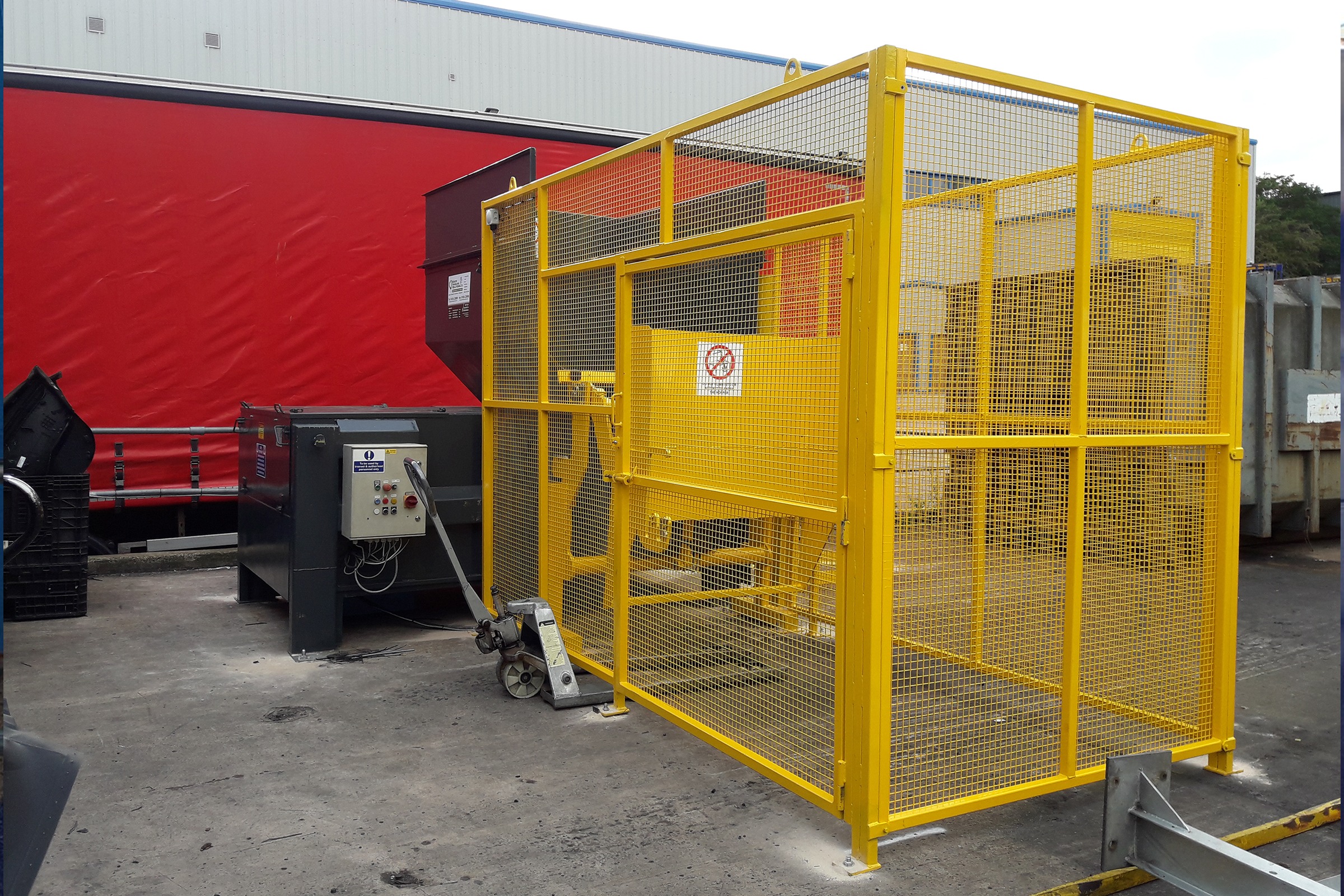

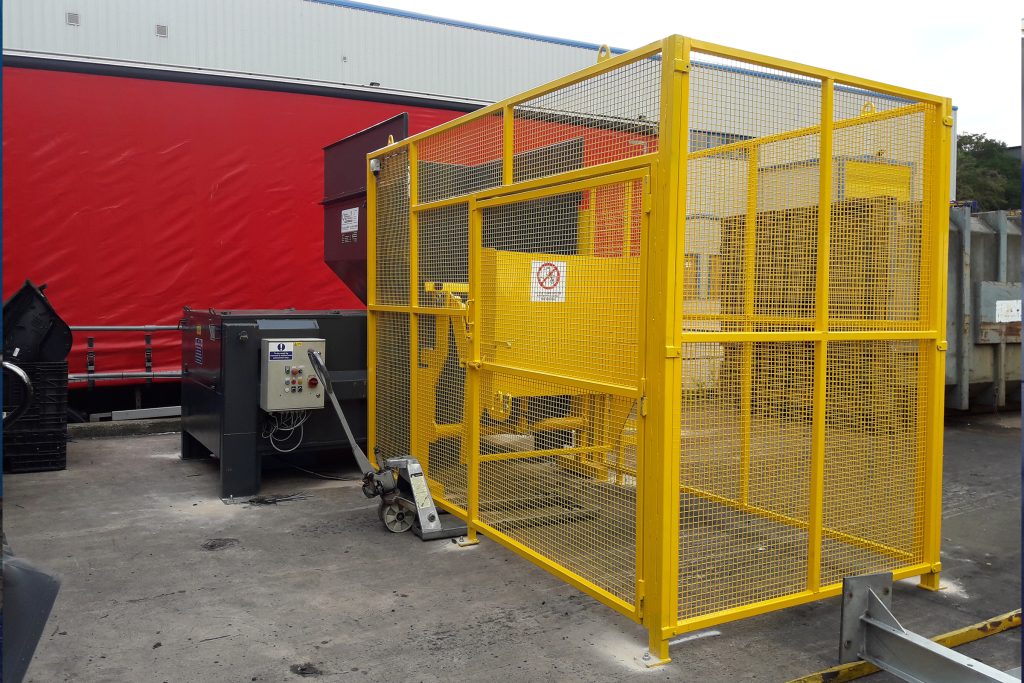

Over the side bin lift with safety cage
Available as dock or ground level lifter.

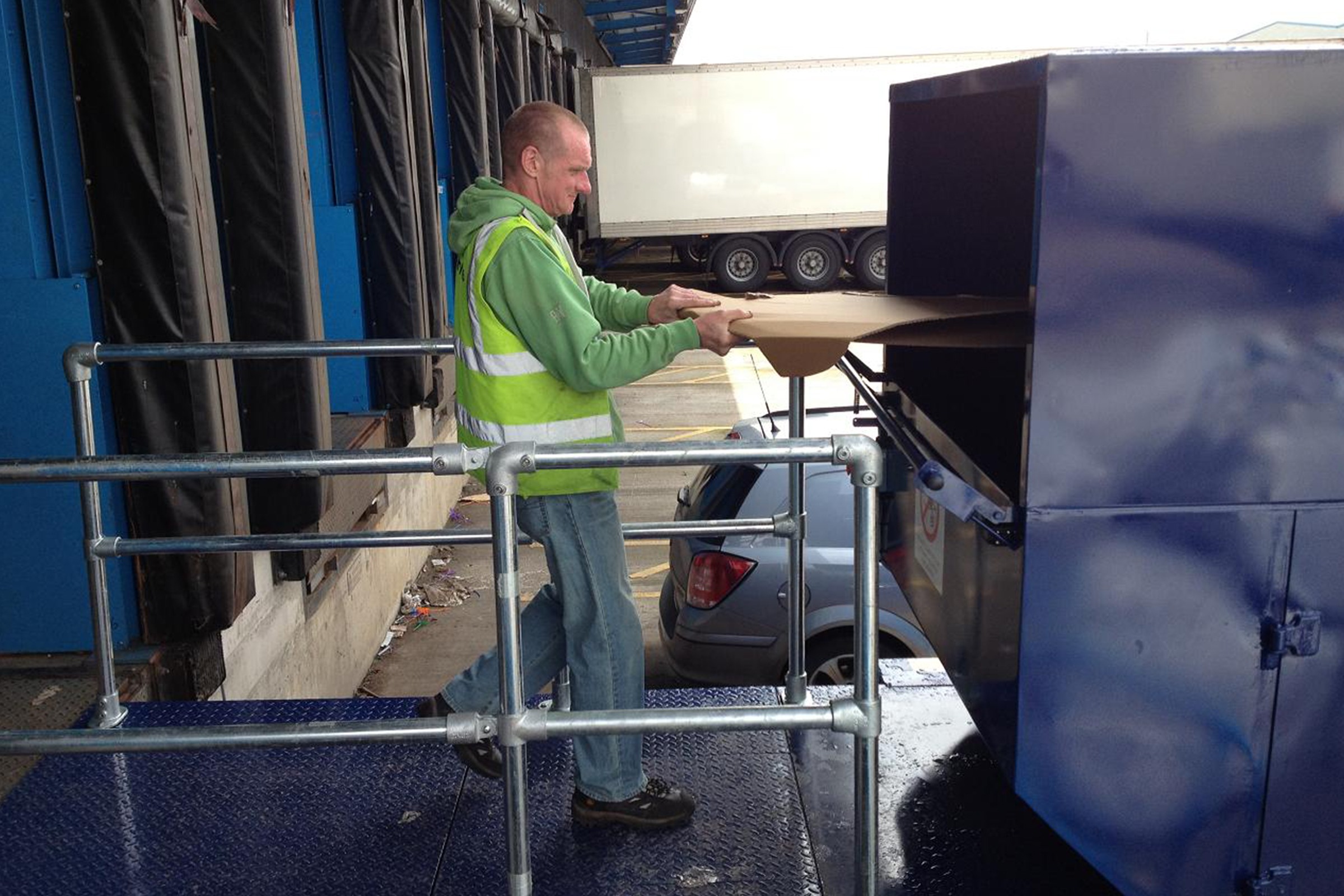

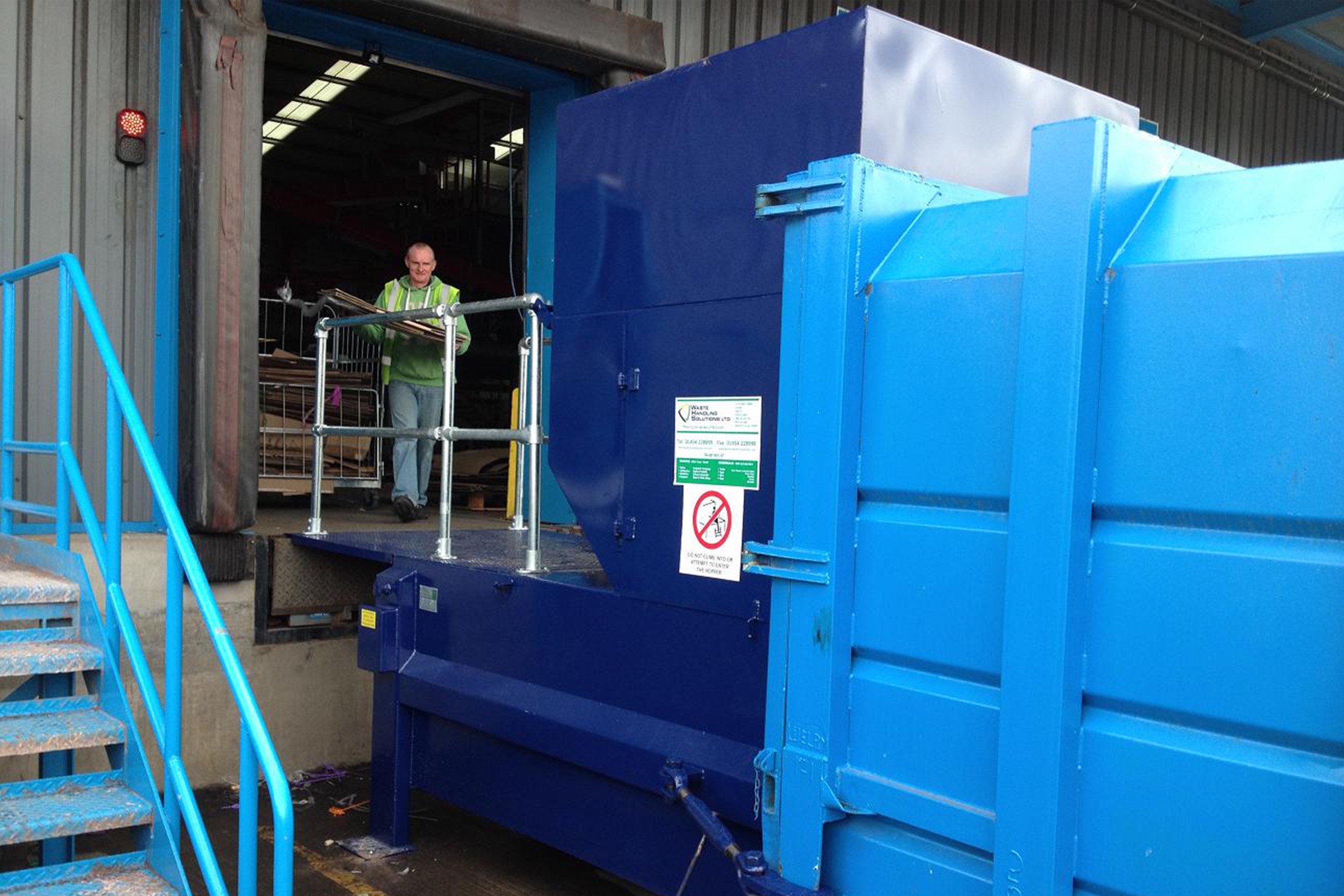

Hand fed from rear
Available both sides with or without trip bars (dependent on height to comply with health and safety regulation).

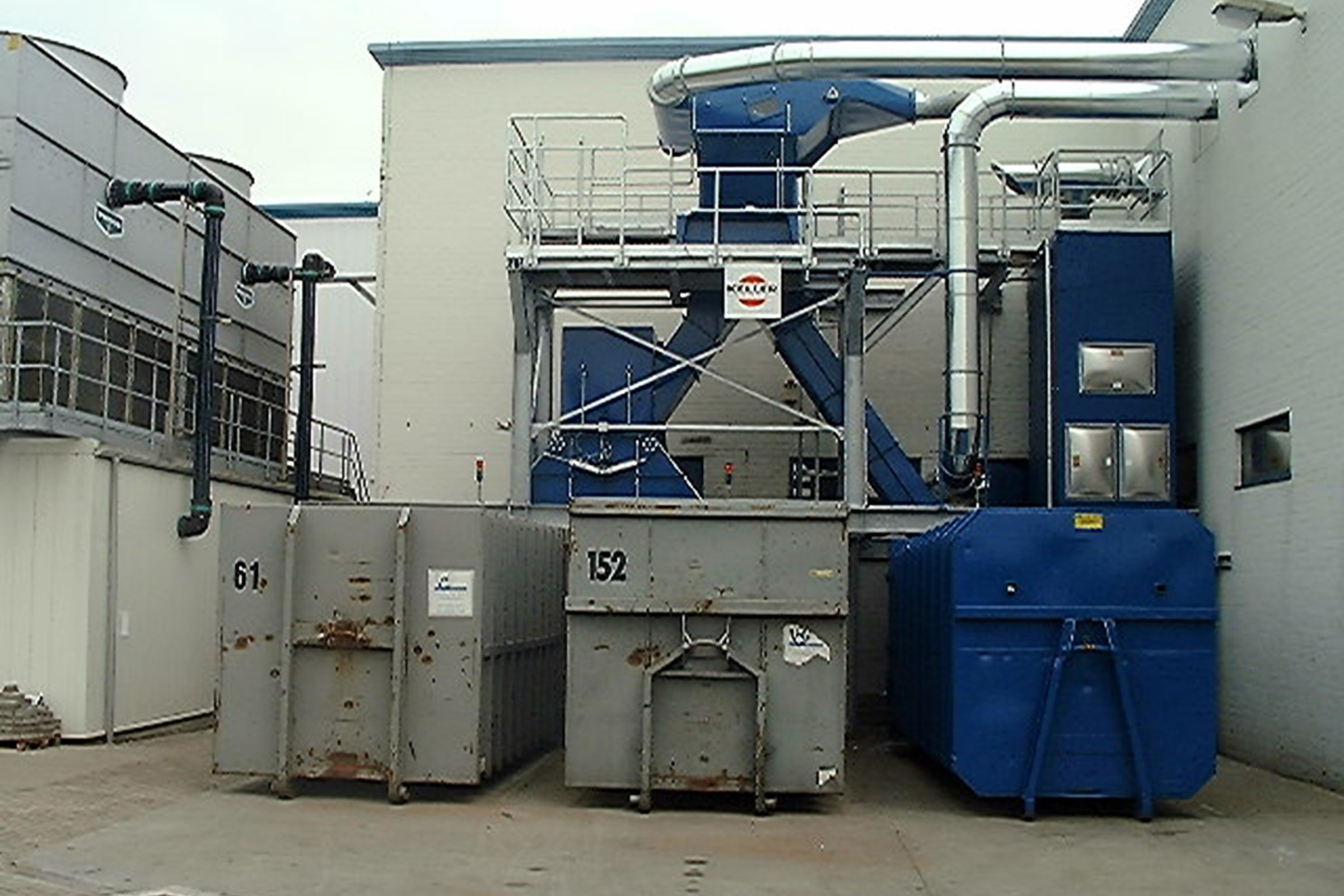

Pneumatic (air driven) feed system

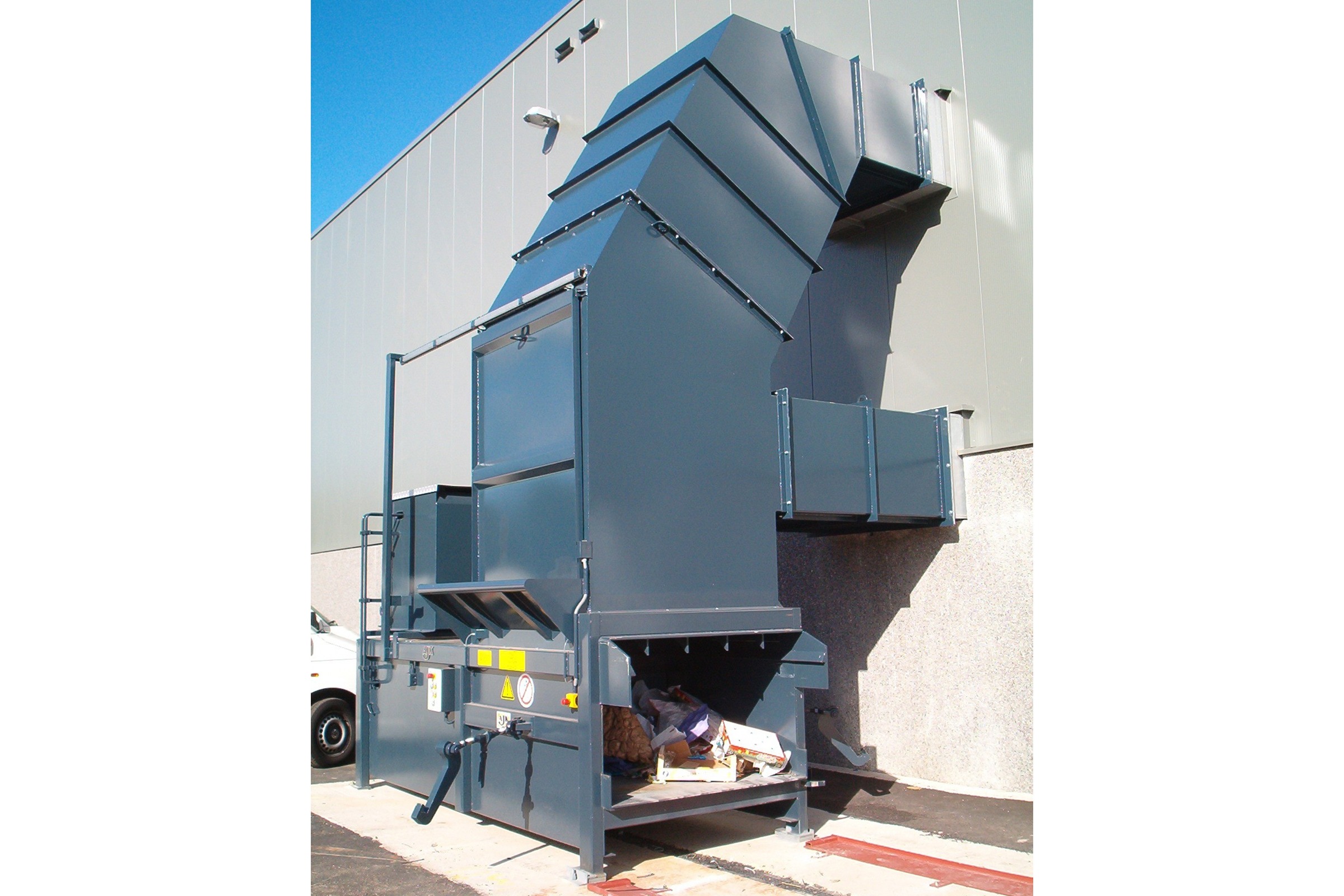

Chute Feed
Over the rear bin inside pod

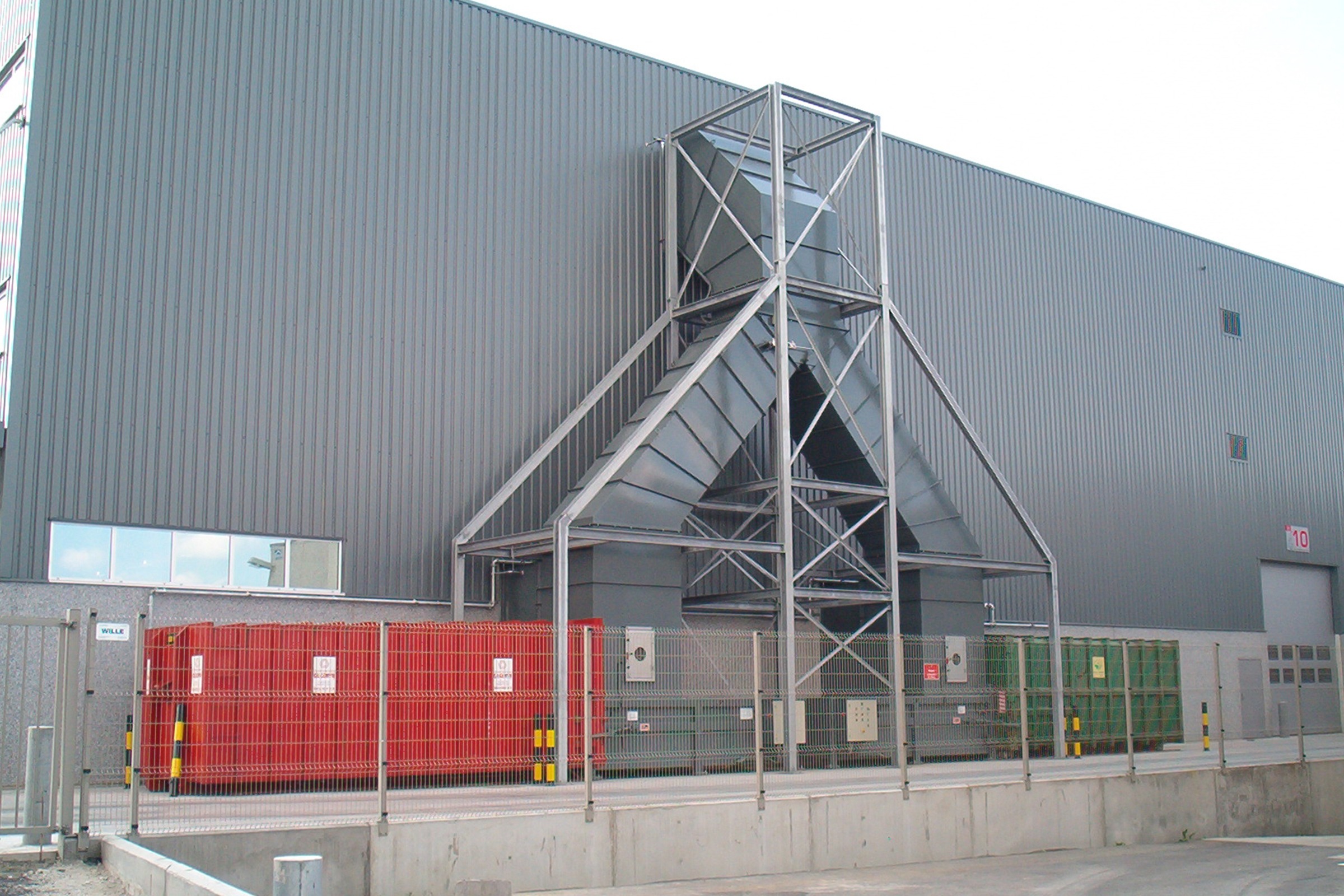

Trouser leg feed system
Static Compactor In Use
