Banding Choppers
About Banding Choppers

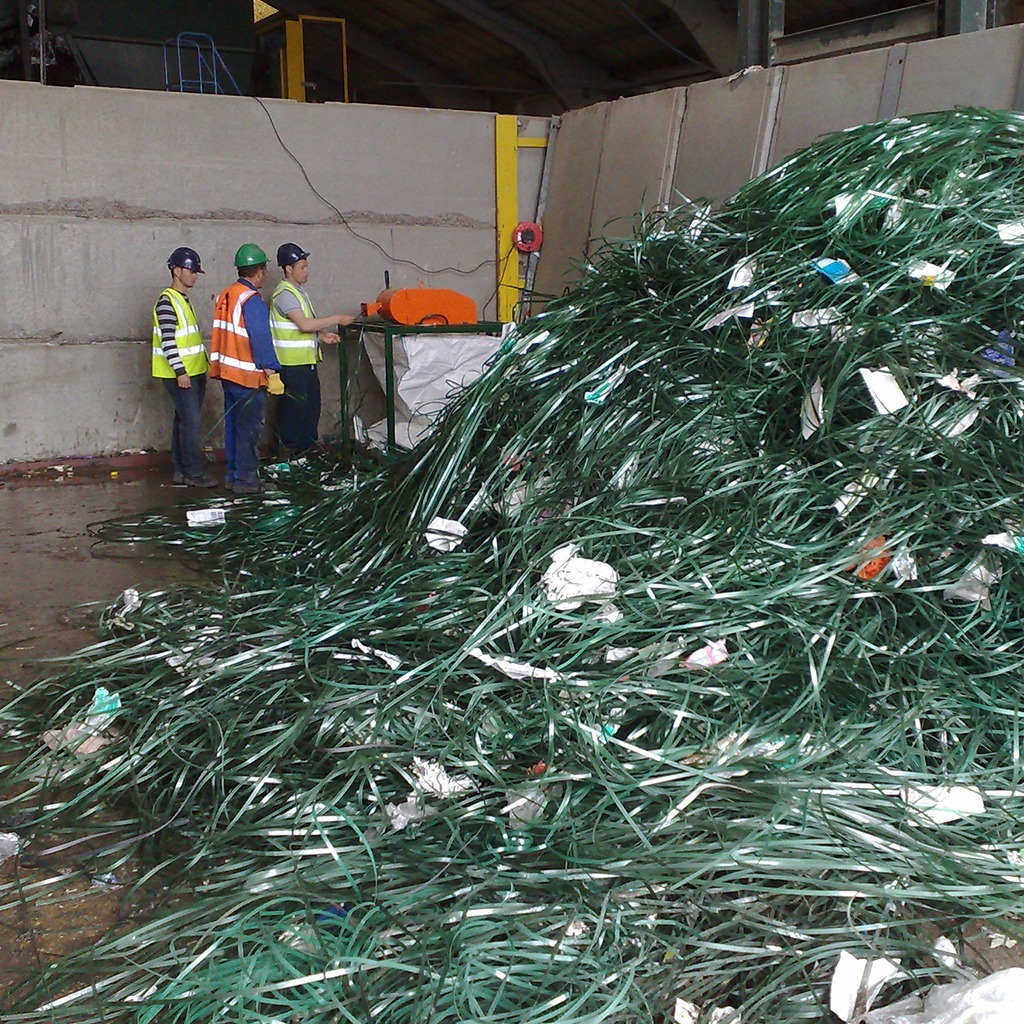

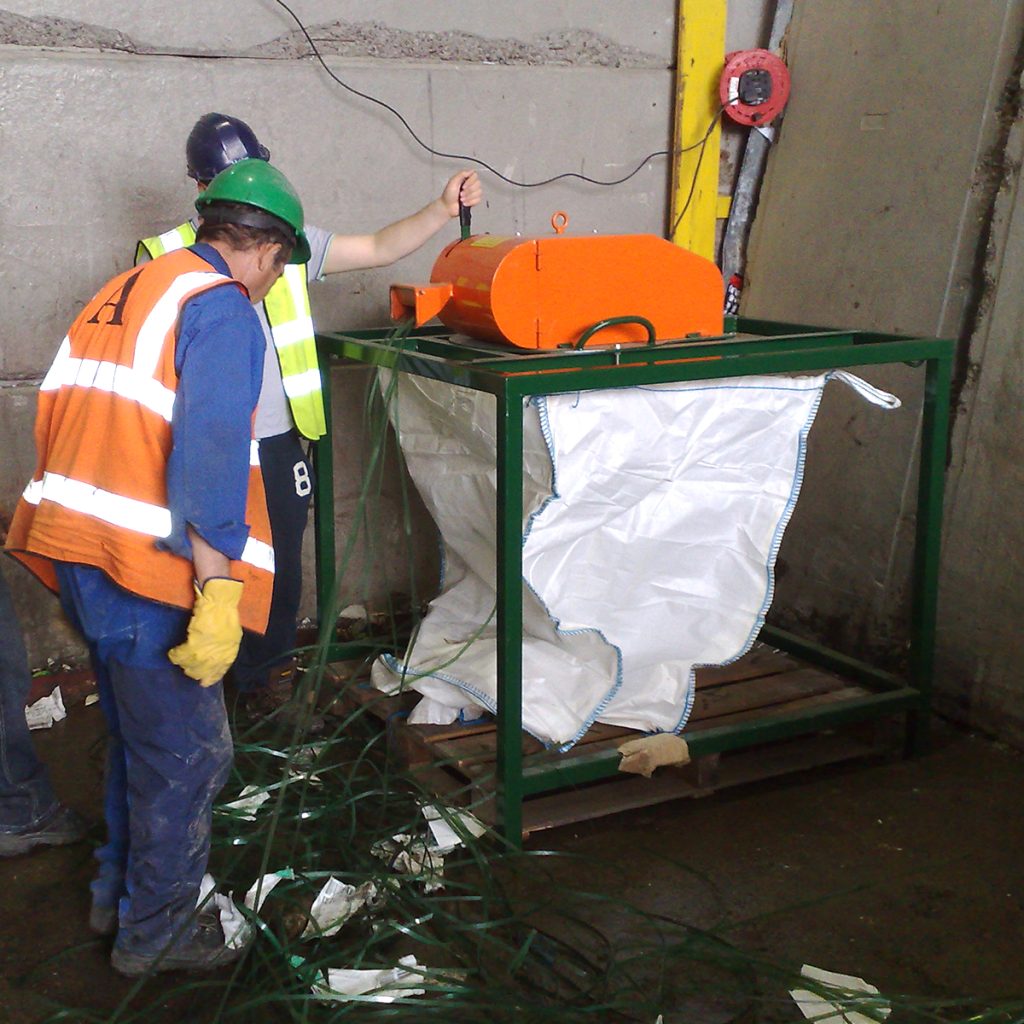

Banding choppers are a highly effective solution for reducing the volume of waste strapping, whether made of metal or plastic. Once the strapping is fed into the machine, the chopper automatically continues the feed, cutting the material into manageable 80mm (3-inch) lengths. This process significantly reduces waste volume—up to 20:1—transforming it into a recyclable form.
By using a banding chopper, you can drastically reduce the space taken up by waste strapping, lower disposal costs, and improve workplace safety by keeping your waste areas organised. Plus, with waste strapping converted into recyclable material, you can contribute to a more sustainable operation.

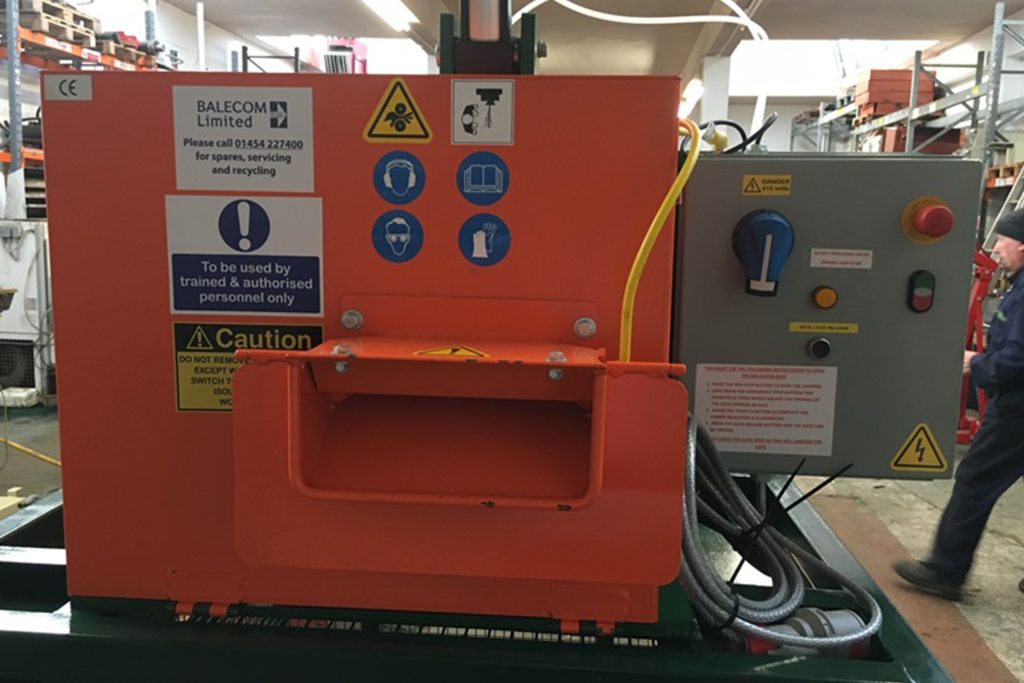

Safety is a top priority. The machine’s exit is baffled to prevent access to moving parts while it’s in operation, and the inlet guarding only allows strapping to be fed into the machine—ensuring the safety of your staff.
With larger, more powerful choppers available, you can process greater volumes of waste and handle higher-density products, making banding choppers an essential part of efficient waste management.
Choppers we offer
At Waste Handling Solutions Ltd (WHS), we provide a range of Sweed Choppers to suit different processing needs. Every chopper we sell conforms to CE regulations and carries the CE marking, ensuring you’re getting a product that meets the highest standards of safety and quality.
Choosing the right model depends on the volume and type of strapping you need to process. To ensure you get the most efficient and cost-effective solution, we recommend getting in touch for expert advice. All technical specifications for the models we offer are listed below.

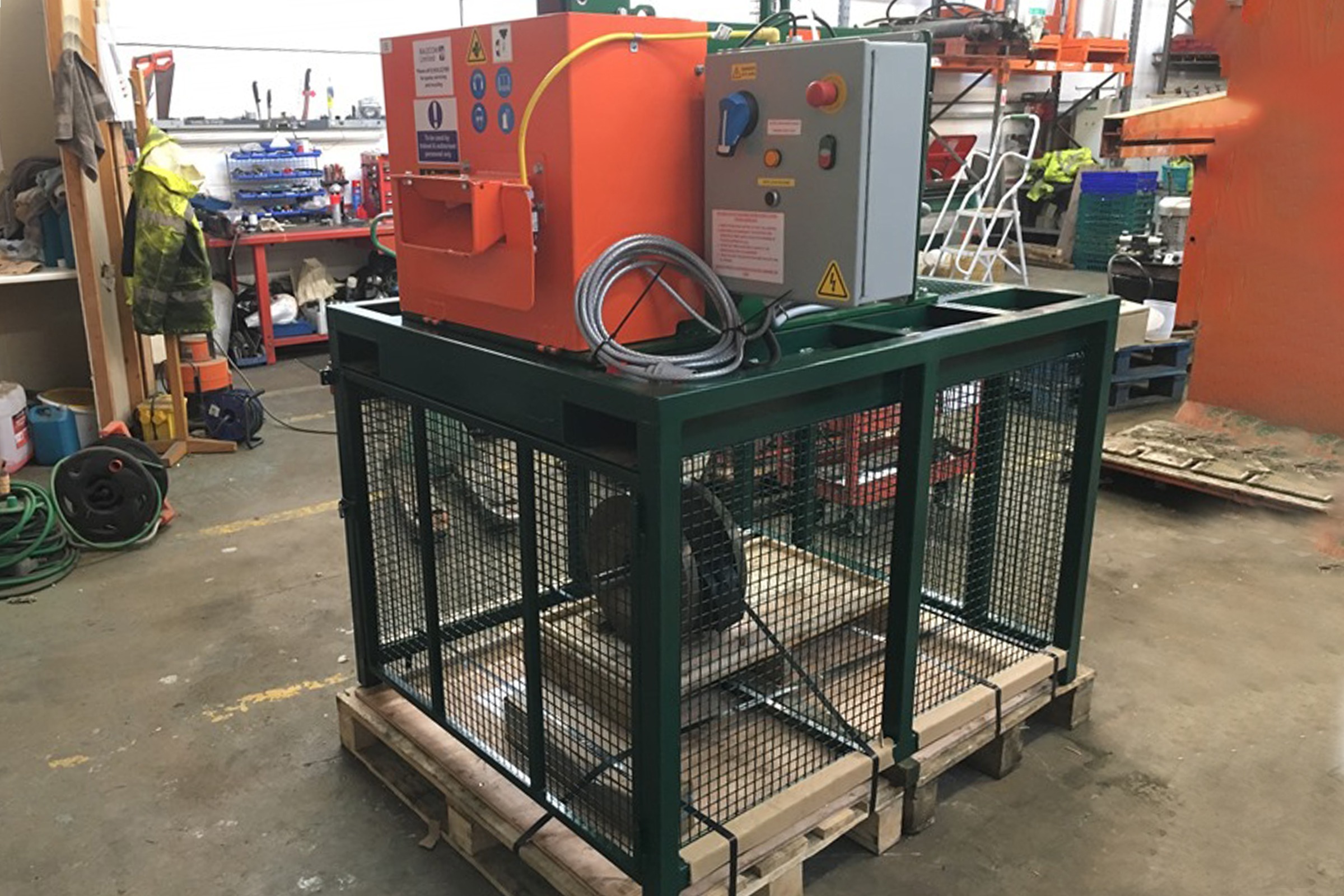

CE5703 XHD
Banding Choppers for Metal or Plastic

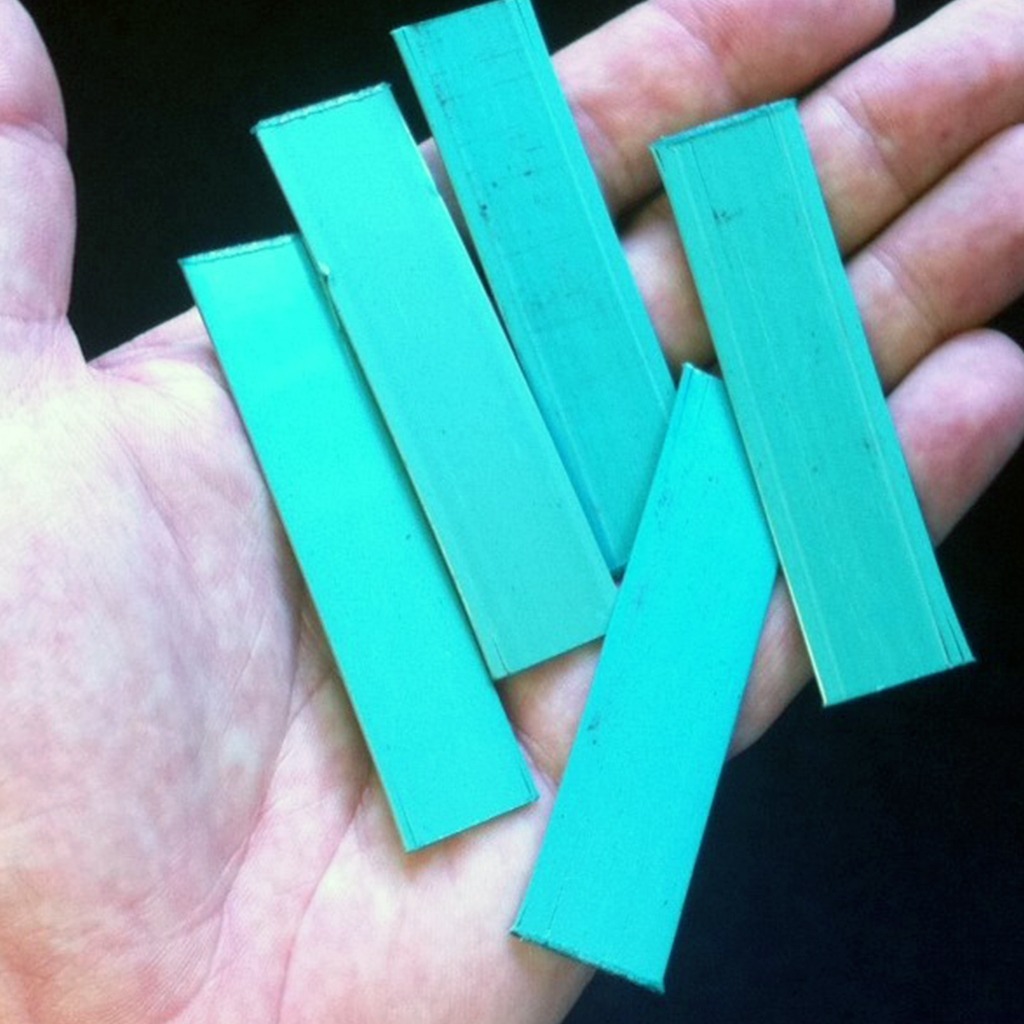

Banding choppers take waste strapping made of either metal or plastic and cut them down into recyclable 80mm (3inch) lengths.
Technical Information
Small Choppers
| Specification | CE300 | CE450 DDX | CE510 XHD |
|---|---|---|---|
| Electric Motor (kW) | 0.372 | 0.73 | 1.12 |
| Electrical | 1-Phase 220 / Volt – 50Hz | 1-Phase 220 / Volt – 50Hz | 3-Phase 380-415/Volt – 50Hz |
| In-feed Speed (metre per minute) | 7 | 36 | 27 |
| Cut length (mm) | +/- 66 | +/- 76 | +/- 89 |
| In-feed Opening (mm) | 25 x 41 | 85 x 25.4 | 57 x 19 |
| Number of Stationary Knives | 1 | 1 | 1 |
| Number of Rotating Knives | 1 | 1, 2, 3 or 4 | 1, 2, 3 or 4 |
| Overall Dimensions (mm) | 480 x 760 x 480 | 910 x 660 x 330 | 580 x 735 x 735 |
| Machine Weight (kg) | ~62 | ~159 | ~256 |
| Shipping Weight (kg) | ~100 | ~198 | ~259 |
Large Choppers

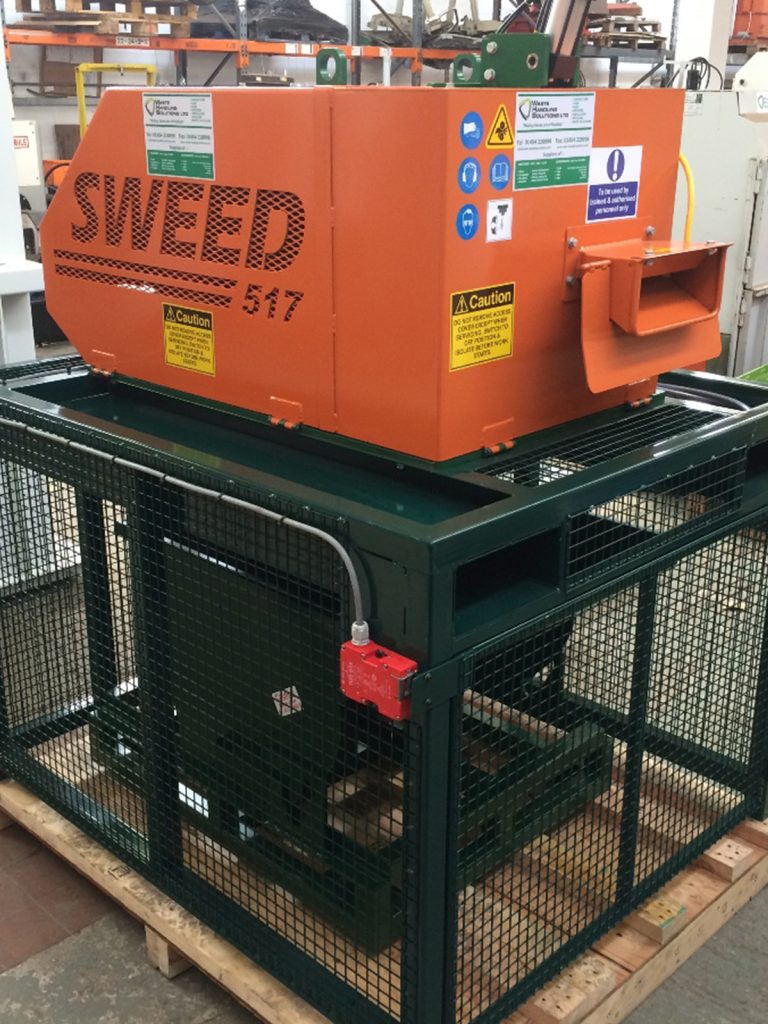

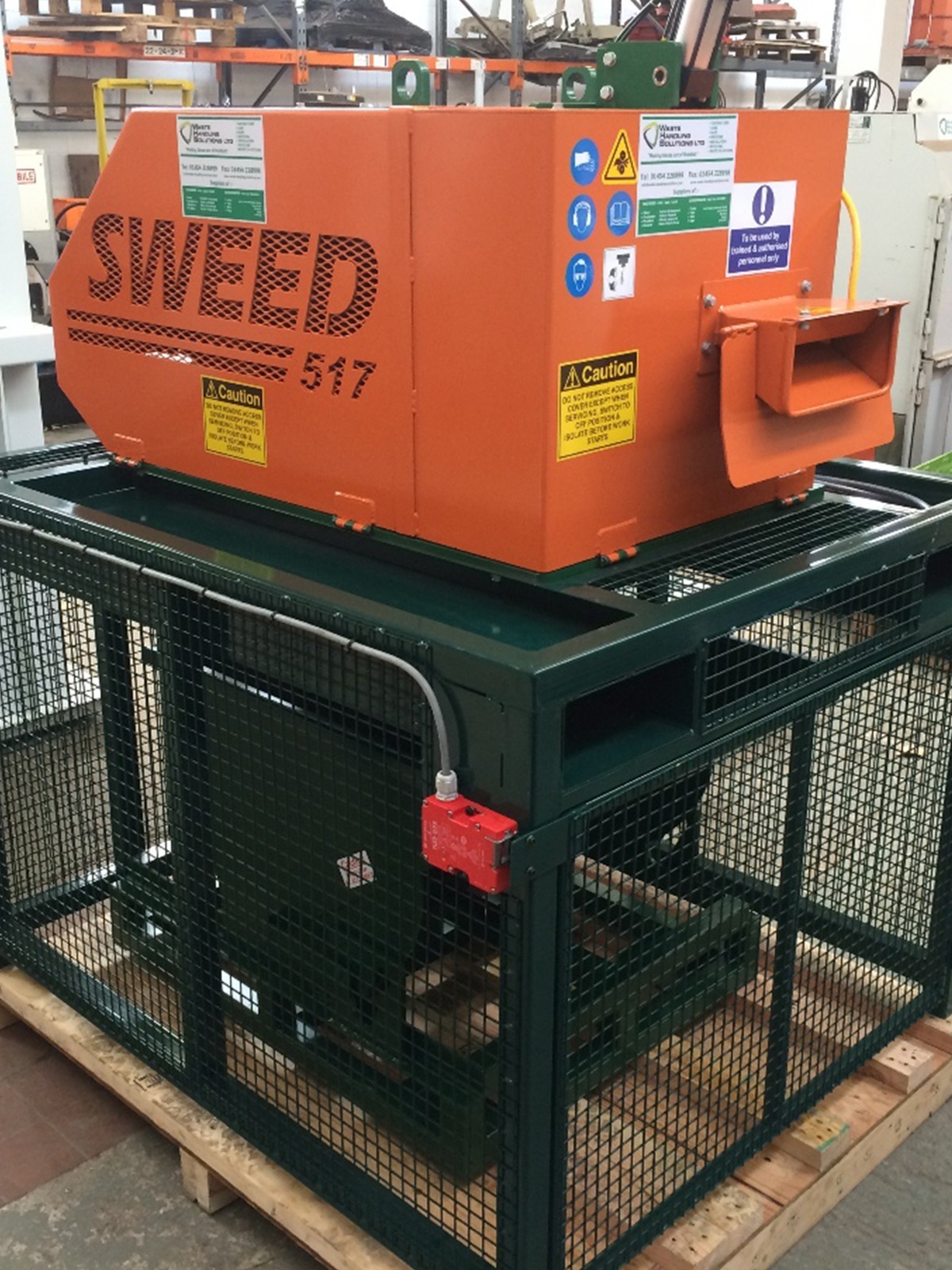

| Specification | CE513 | CE517 XHD | CE5530 XHD | CE513 |
|---|---|---|---|---|
| Electric Motor (kW) | 1.49 | 3.73 | 7.5 – 18.6 | 1.5 – 3.7 |
| Electrical | 3-Phase 380-415/Volt – 50Hz | 3-Phase 380-415/Volt – 50Hz | 3-Phase / multiple voltage available | 22.3-44.7kW Flywheel motor options |
| In-feed Speed (metre per minute) | 27 | 27 | 60 | 0 – 60 |
| Cut length (mm) | +/- 82.5 | 89 | variable | variable |
| In-feed Opening (mm) | 196 x 31.75 | 168 x 41 | 168 x 41 | 165.1 x 63.5 |
| Number of Stationary Knives | 1 | 1 | 1 | 1 |
| Number of Rotating Knives | 1, 2, 3 or 4 | 1, 2, 3, 4 or 8 | 1, 2, 3 or 4 | 1, 2, 3 or 4 |
| Overall Dimensions (mm) | 1220 x 735 x 580 | 1420 x 860 x 760 | ||
| Machine Weight (kg) | ~454 | ~760 | 1,530 | 4,536 |
| Shipping Weight (kg) | ~492 | ~798 | ||
| Air required | 4 bar, 55L | 2 CFM 60psi |
Upgrades & Ancillary Equipment
Maximising the efficiency and safety of your banding chopper is simple with a range of upgrades and additional supporting equipment available at Waste Handling Solutions Ltd (WHS). These options allow you to tailor your chopper to your specific needs, improving safety, performance, and overall ease of use.
Safety Upgrades
Enhance the safety of your operations with these essential features:
- Safety Switches: For added protection during use.
- Safety Exhaust Spillway Chute: Prevents accidental access to hazardous areas.
- Machine in Use Light Indicator: Provides clear visual signals when the machine is operating.
- GFCI Plug: Ensures electrical safety.
- Wash-Down Motor & Electrical: For easy cleaning and maintenance in harsh environments.
- Sound Dampening: Reduces noise levels during operation.
- Auto Start and Stop / Timed Stops: For greater control and energy efficiency.
Special Applications
For businesses with unique needs, we offer:
- Split Infeed: To accommodate different types of strapping materials.
- Magnetic Starter / Frequency Drive: To enhance motor efficiency and performance.
- No Feed Works / Inverter Duty Motor: For specialised applications requiring greater power control.
Stands & Containers
We offer a variety of stands and containers to improve the organisation and flow of your waste management processes:

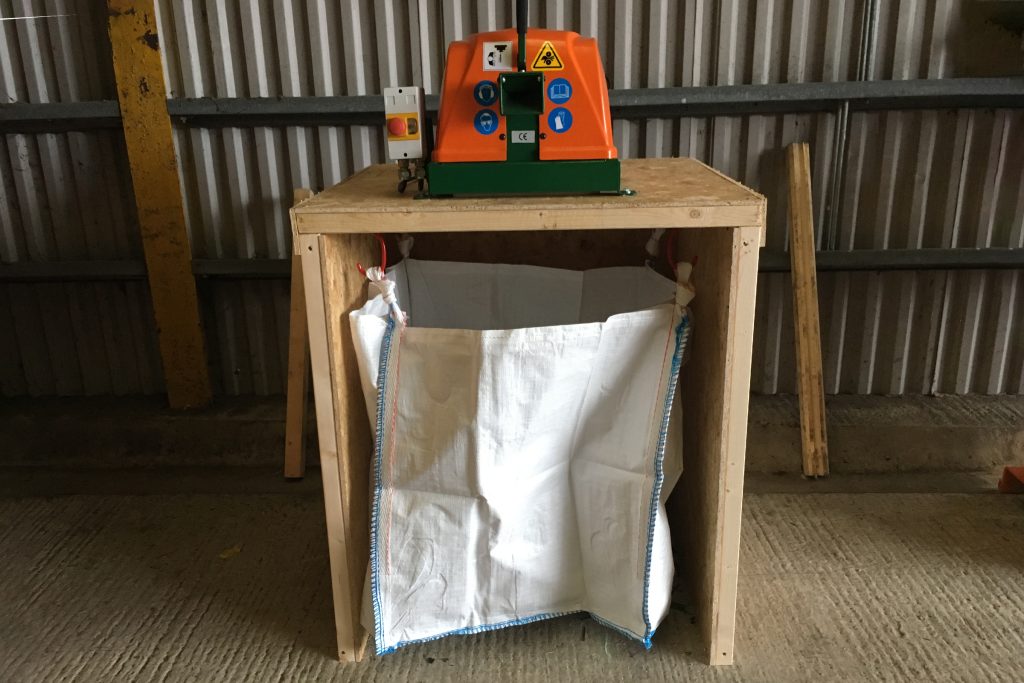

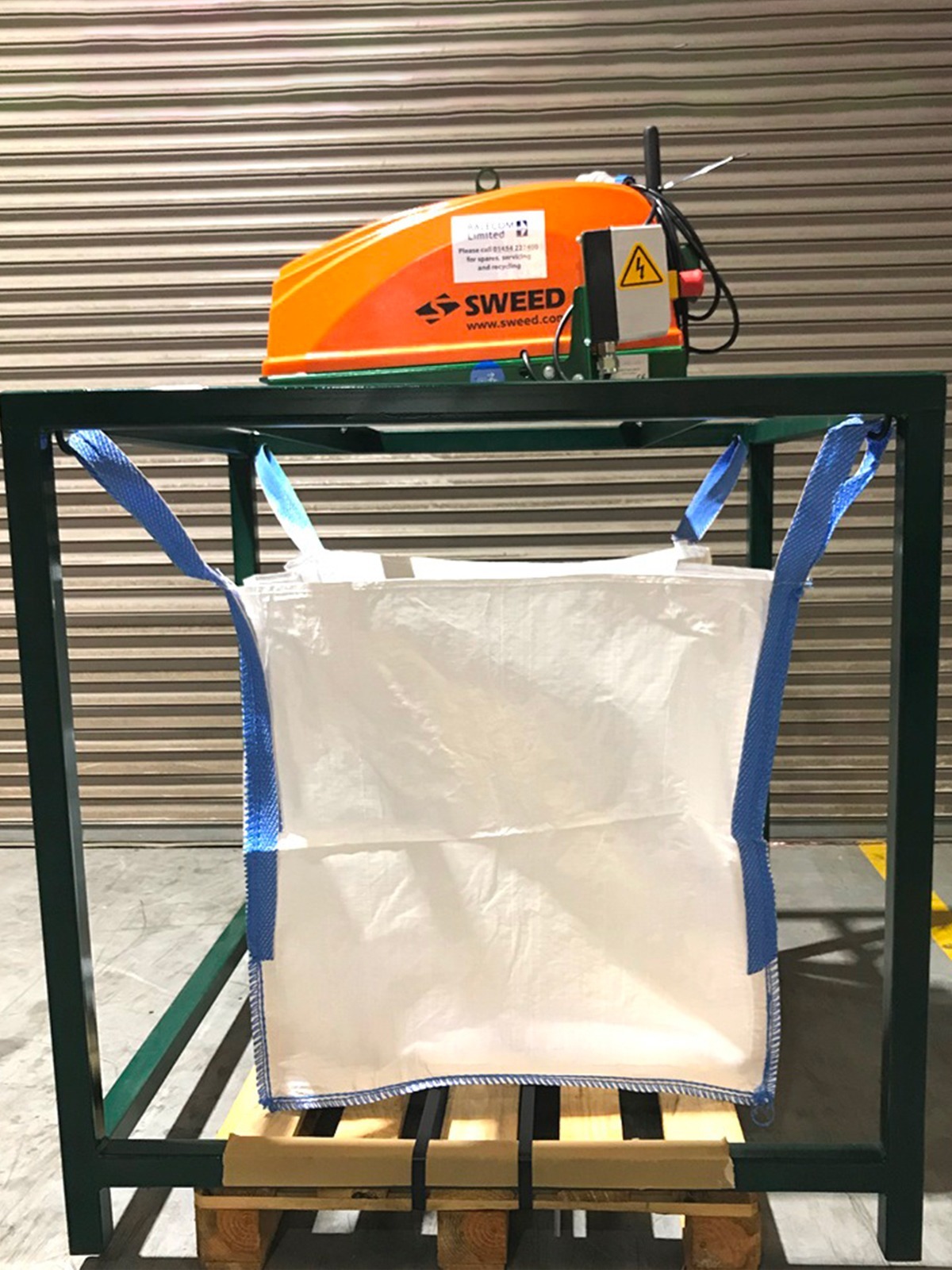

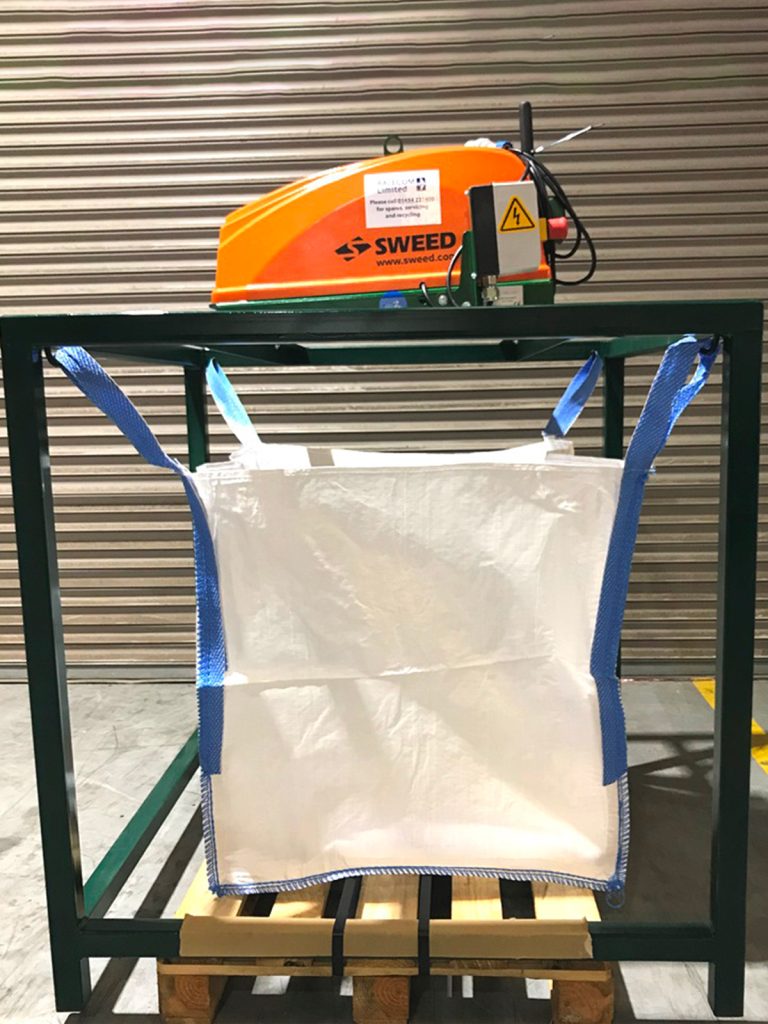

- Slider Stand / Hopper Stand
- 1/2 Yard EZ Dump Hopper: For easy disposal of processed strapping.
Servicing & Maintenance
If you’re considering renting a chopper from WHS, you’ll enjoy the peace of mind that comes with comprehensive servicing, maintenance, and support as part of the rental package. We provide:
- Nationwide coverage: Our mobile engineers are available throughout the UK.
- Fast response times: Our normal call-out time is between 24 and 48 hours, depending on location.
- Maintenance parts included: All necessary parts are covered, reducing downtime and ensuring your chopper continues to operate smoothly.
Funding & Financing
We understand that investing in equipment like a chopper can involve significant upfront costs, so we offer flexible financing options to help you reduce waste management expenses while improving operational efficiency.
You can finance your chopper through:
- Waste cost reduction: Lower waste disposal and transport costs.
- Recycled material rebates: Generate revenue from recyclable materials.
- Flexible acquisition options: Choose from WHS rental with maintenance, lease or HP (hire purchase) with optional maintenance, or outright purchase.
At WHS, we’re committed to helping you find the best solution for your waste management needs, ensuring that you receive the highest return on your investment.
Renting Benefits
- No capital outlay
- Tax saving on rental
- Financial saving on waste removal
- Flexible upgrades that suit you
Buying Benefits
- Full capital allowances
- Asset to the business
- Flexibility in service contract
